EKW crate washing systems EKW-7000 up to 1120 crates

SKU: EL83101850
Category: Washing systems for boxes and baskets

Die Kistenwaschanlage EKW-Kistenwaschanlagen EKW-7000 bis 1120 Kisten reinigt Kisten im Durchlauf mit einer Leistung von bis zu 1120 Stück pro Stunde. Sie ist aus Edelstahl 1.4301 gefertigt und auf eine reproduzierbare, hygienische Reinigung ausgelegt.

Get a personalized consultation now

Get a no-obligation consultation to find the best solution and products for your specific needs. From small businesses to global corporations—we’ll find the right solution for you.

Phone: +49 2973 5968680

Description

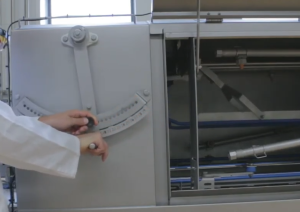

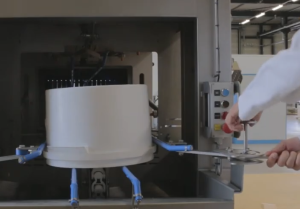

'EKW-7000 crate washing system - for crates with a size of 600 x 400mm. - for cleaning 1120 crates per hour with a dwell time of 45 seconds. - the crates are transported through the system with a transport width of 600 mm. - max. height is 300 mm. Description: The entire system is constructed from solid plates and profiles (stainless steel 304 - material number 1.4301.) and stands on adjustable feet. The washing tunnel is accessible using practical doors that open upwards. The crate transport is carried out using a plastic chain. The rinsing pipes are equipped with a large number of plastic click nozzles. The spray pattern of these nozzles can be adjusted quickly and easily without tools. Side and movable upper frame (parallelogram) ensure the correct position of the crates during cleaning. In the rinsing zone, the crates are rinsed with clean water. The rinsing arch is connected directly to the water network. The system is operated in a stainless steel control cabinet. Fuses: - Sensors on the doors of the washing tunnel: as soon as a door is opened, the system stops. - Sensor-controlled rinsing. - Emergency switches that are easy to reach. - Water level switch to prevent the pumps from running dry. - Protective cap over the drive and rotating parts. Main washing zone: In the main washing zone, the crates are cleaned and dirt is removed from the crates. The nozzles are configured for maximum cleaning results. They are fed by a powerful, energy-saving pump. Before the rinsing water flows back into the main washing tank for reuse, it is thoroughly filtered through a filter drawer. The filter drawer is easy to remove and the spacious water tank is therefore easily accessible. The main washing tank is filled via its own filling connection and is equipped with level sensors. A high level sensor switches off the water supply as soon as the water reaches operating level. A low level sensor opens the water supply if the water level is too low. An overflow prevents the water level from becoming too high. A ball valve is installed to empty the main wash tank. This allows the tank to be emptied quickly and safely. The water tank is designed with a sloped floor so that the water can drain away quickly and completely. Rinse zone: In the rinse zone, the rinse water (or adhering cleaning agents) from the crates is rinsed off with fresh water. For this purpose, the spray arch is connected directly to the water network. A sensor operates this rinse arch. If there are no crates present, the fresh water supply is closed. Your advantages: * "2 year guarantee" * Inclined position of the crates reduces water carryover * Automatic shutdown of the water supply as soon as there is no laundry in the machine * Large cleaning openings * Sensors on the openings of the washing tunnel * Tank bottom with slope for quick cleaning Technical data Type: EKW-7000 Fuse: 3x 40A (This value can change with additional options) Voltage: 400V - 50Hz
