Technical Specifications
• Capacity: 200-liter volume per batch.
• Electrical power: 3 N~ / 400 V / 50 Hz / 1.5 kW / 16 A.
• Air consumption: 315 NI/min at 6 bar.
• Variable speed: 2–15.
• Length: 1700 mm.
• Depth: 1608 mm.
• Height: 2040 mm.
Material and Cleaning
Constructed from stainless steel and food-grade materials, the unit is robust, corrosion-resistant, and easy to clean. Its smooth surfaces withstand frequent cleaning and disinfection, making it suitable for continuous use in hygienic environments.
Use in the Food Industry
Designed to meet the requirements of food processing, this product facilitates smooth, hygienic operations. It integrates seamlessly into existing workflows and reduces the physical burden on staff during repetitive tasks.
Product Details
• A comprehensive solution for the tumbling and/or mixing needs of whole-muscle meat products—such as chicken, chicken legs, ham, and pork loins—as well as poultry, ground meat products, fish, vegetables, salads, and more.
• Its range of applications and versatility are virtually limitless!

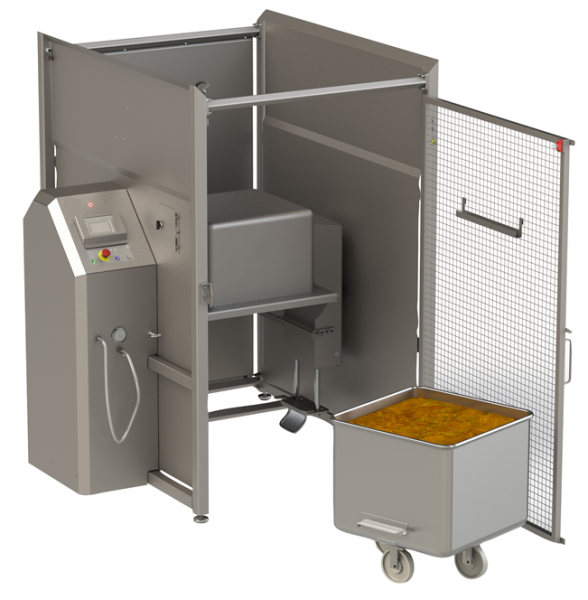

• The standard-trolley tumbler is designed for use with industry-standard trolleys.
• Note that the headspace above the 150-liter container allows for thorough mixing and tumbling of the product. This 150-liter space, combined with the 200-liter container volume, provides the total capacity for tumbling/mixing, allowing the container to be loaded to its maximum limit. It should also be noted that there is a bar inside the headspace, which gently separates the product during the tumbling process, ensuring very fast and thorough mixing. The standard-trolley tumbler can rotate in two directions. A foot pedal is used to operate the locking mechanism for the processing trolleys.
• All safety measures have been addressed through the use of precise sensors and switches.
• The new digital display allows for easy programming of start times, vacuum activation/deactivation, interval operation, frequency converter settings, and a control system capable of storing 100 programs.
• Once the set time has elapsed, the tumbler stops with the trolley in the exact correct position. Pressing the "down" button lowers the trolley, allowing it to be removed. The standard-trolley tumbler can then be reloaded.
• The standard-trolley tumbler is very easy to maintain to a high standard of hygiene and requires minimal maintenance.
• Available as an option: 5 different mixing arms that make the tumbler even more functional and versatile. These facilitate the easy mixing of even the most challenging products, making them valuable additions to the standard-trolley tumbler. Thanks to their simple assembly and disassembly, the mixing arms can be easily attached or removed depending on the specific product requirements. Using different mixing arms allows you to optimize the mixing process and increase the flexibility of your tumbler. (Mixing arms can be retrofitted!)
*Also available:
Double Tumbler (Item no. GARGBT600)
Designed for two lifting/loading trolleys simultaneously!
